United States Copper Core Flange Bushings
VTE has developed an innovative and unique solution for passing current through a barrier. Our Copper Core Flange Bushing brings new features, low cost and ease of use to your current passing projects
Our Copper Core Flange Bushings have been designed with these key componenets in mind:
- High Energy Transfer
- High Torque
- High Anti-Rotation
- Multiple Weatherproof options
- Low Product Cost
- Small Insulated Footprint
- Also available in Metric 10mm
- High Energy Transfer
-
The Copper Core is cold swaged into a hex shape, providing high energy transfer performance.
The conductive materials are placed exactly where needed, reducing cost and improving performance.
- High Torque
-
Significant amounts of fastener torque is required when attaching multiple 4/0 ga (120mm2) cables. Brass shaft devices may fail under high torque loads. Our Copper Core Power Bushings uses a 3/8" (or 10mm) Nickel-plated steel shaft to provide high torque value.
- High Anti-Rotation
-
Four mounting holes ensure secure mounting for anti-rotation. Bushing can use round or double-d hole for added anti-rotation and legacy applications. Inner copper core and shaft are swaged into a hex shape and inserted warm, to ensure tight fitting and high anti-rotation, proviing 100% stability when fastening cables. - Multiple Weatherproof options
-

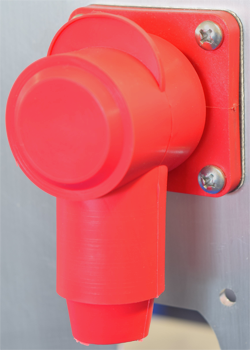

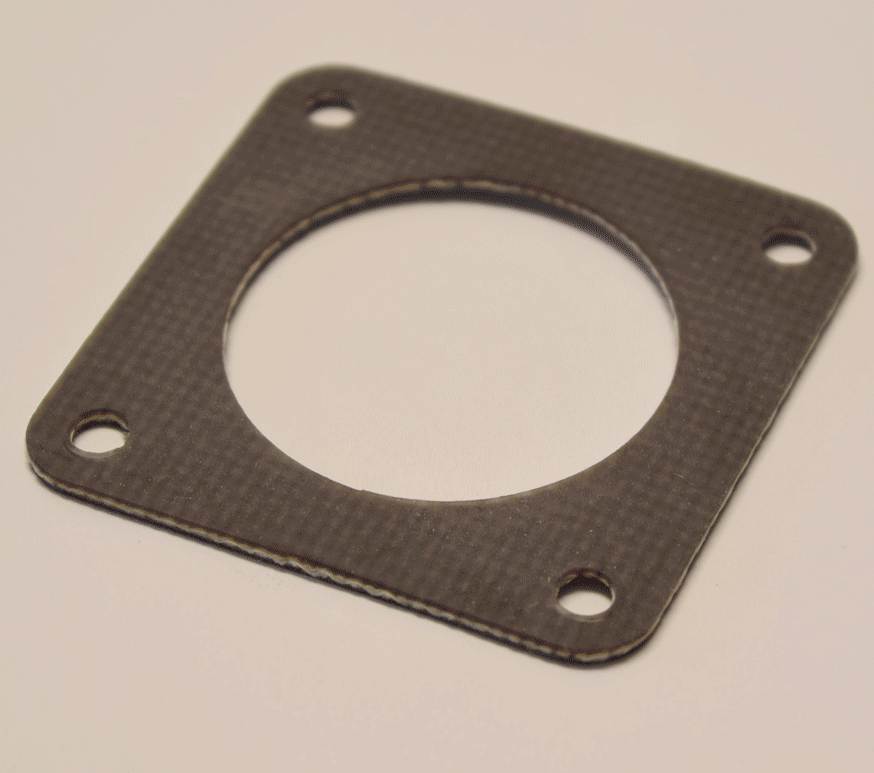

Our CCFB can be ordered with a weatherproof gasket as well as
232 Series
Terminal Insulators. The insulators snap onto the groove ring to prevent accidental shorting, as well as weather resistance to IP65. Both sides of bushing can be insulated.
- For panel thickness up to .40" (10.7mm)
- Easy to install
- Very low cost
- Copper Core SAE Max Amperage:
- Peak: 550amp @ 12vdc (6.6kw)
- Duty Cycle: 80%
- Copper Core Metric Max Amperage:
- Peak: 450amp @ 12vdc (5.4kw)
- Duty Cycle: 80%
- Max Voltage: 48vdc
- Available in Red, Black & Yellow
- Bushing Material : Glass-Filled Nylon
- Post Material : Nickel Plated Mild Steel
- Fastener (nut) Material : Stainless Steel
- Can be fastened to panel with scres or nut & bolt
Use Terminal Insulators to comply with industry standards
|
232N3 Series Insulator Accepts cable size 2 awg - 2/0 awg Meets IP65 weatherproof rating Meets ISO, ABYC & USCG Safety Requirements for energized terminals W model includes (1) re-inforced silicone gasket and (1) 232N3 terminal insulator |

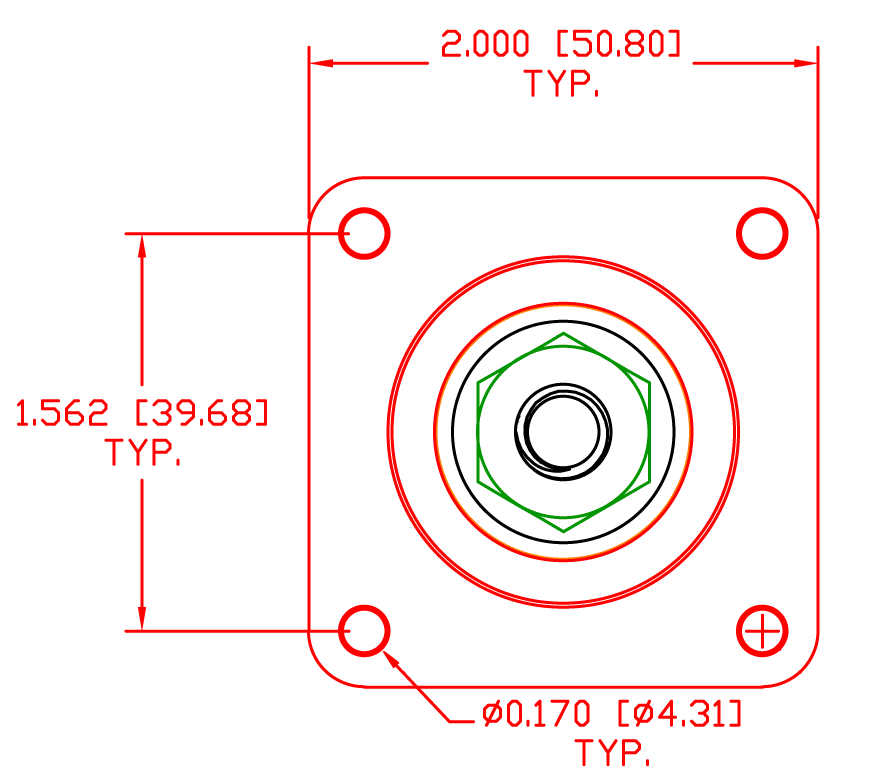

| Click part number to see detailed drawing | ||||
| 3/8" Post 550 amp max | Normal use | CCFB376N02 | Red | $8.21 |
| CCFB376N05 | Yellow | $8.19 | ||
| CCFB376N14 | Black | $8.07 | ||
| Weatherproof | CCFB376N02W | Red | $14.05 | |
| CCFB376N05W | Yellow | $14.42 | ||
| CCFB376N14W | Black | $13.85 | ||
| 10mm post 450 amp max | Normal use | CCFB106N02 | Red | $9.52 |
| CCFB106N05 | Yellow | $9.56 | ||
| CCFB106N14 | Black | $9.37 | ||
| Weatherproof | CCFB106N02W | Red | $14.19 | |
| CCFB106N05W | Yellow | $14.23 | ||
| CCFB106N14W | Black | $14.01 | ||
- Total Order Minimum: $25.00
- Online prices enjoy a 5% reduction.
- For commercial quantities, please contact VTE, Inc.
