United States Large 4 Point Terminal Busbar
VTE presents our Large 4 Point Terminal Busbar. These systems allow for multiple connections to positive and negative systems. Each connection post can maintain multiple connections, making them flexible and robust.
 |
 |
|
| 3/8" Positive Bus - 74375N0N02 | 5/16" Negative Bus - 74312N0N14 |
| RECOMMENDED: |
Positive Connections: 3/8" Negative Connection: 5/16" |
- Multiple connection points, to accomodate multiple power connections
- Nickel Plated Brass contact plate: high current & anti-corrosive
- Max Amperage:
- 250 amps @ 12 vdc per connection (all post sizes)
- Max Voltage: 48 vdc
- 5/16", 3/8", M8 or M10 stainless steel connection posts
- Stainless steel hex nuts and washers
- Base Material: 16% Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 5.7 in
- Model with cover includes appropriate cover (723 Series) and retaining nuts
- To meet some safety guidelines, protective heat shrink tubing must be used on terminal barrel to insulate against accidental shorts.
| Model Number | Max Amperage @ 12 vdc |
Post Size | Cover | Color | Price |
|---|---|---|---|---|---|
| 74312N0N02 | 250 | 5/16" | No | Red | $8.40 |

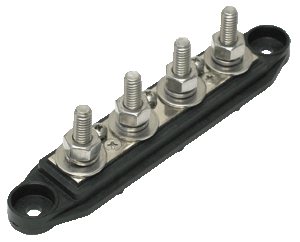

| 74312N0N14 | 250 | 5/16" | No | Black | $8.09 |
| 74312N1N02 | 250 | 5/16" | Yes | Red | $10.41 |
| 74312N1N14 | 250 | 5/16" | Yes | Black | $10.16 |
| 74375N0N02 | 250 | 3/8" | No | Red | $8.90 |
| 74375N0N14 | 250 | 3/8" | No | Black | $8.79 |
| 74375N1N02 | 250 | 3/8" | Yes | Red | $10.94 |
| 74375N1N14 | 250 | 3/8" | Yes | Black | $10.88 |
| 74008N0N02 | 250 | M8 | No | Red | $8.42 |
| 74008N0N14 | 250 | M8 | No | Black | $8.29 |
| 74008N1N02 | 250 | M8 | Yes | Red | $11.75 |
| 74008N1N14 | 250 | M8 | Yes | Black | $11.55 |
| 74010N0N02 | 250 | M10 | No | Red | $9.53 |
| 74010N0N14 | 250 | M10 | No | Black | $9.51 |
| 74010N1N02 | 250 | M10 | Yes | Red | $12.07 |
| 74010N1N14 | 250 | M10 | Yes | Black | $11.97 |
| Cover Kit | Cover For | Post Size | Color | Price |
|---|---|---|---|---|
| 723N1 | 74312N0N02 | 5/16" | Red | $3.60 |

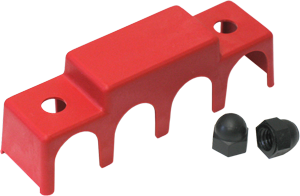

| 723N2 | 74375N0N02 | 3/8" | Red | $4.03 |
| 723N3 | 74008N0N02 | M8 | Red | $4.24 |
| 723N4 | 74010N0N14 | M10 | Red | $22.60 |
| 723N5 | 74312N0N14 | 5/16" | Black | $3.27 |

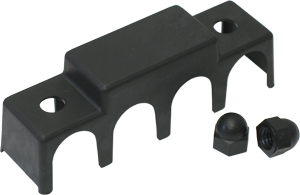

| 723N6 | 74375N0N14 | 3/8" | Black | $3.88 |
| 723N7 | 74008N0N14 | M8 | Black | $22.60 |
| 723N8 | 74010N1N14 | M10 | Black | $22.60 |
- Total Order Minimum: $25.00
- Online prices enjoy a 5% reduction.
- For commercial quantities, please contact VTE, Inc.
